Main parameters:

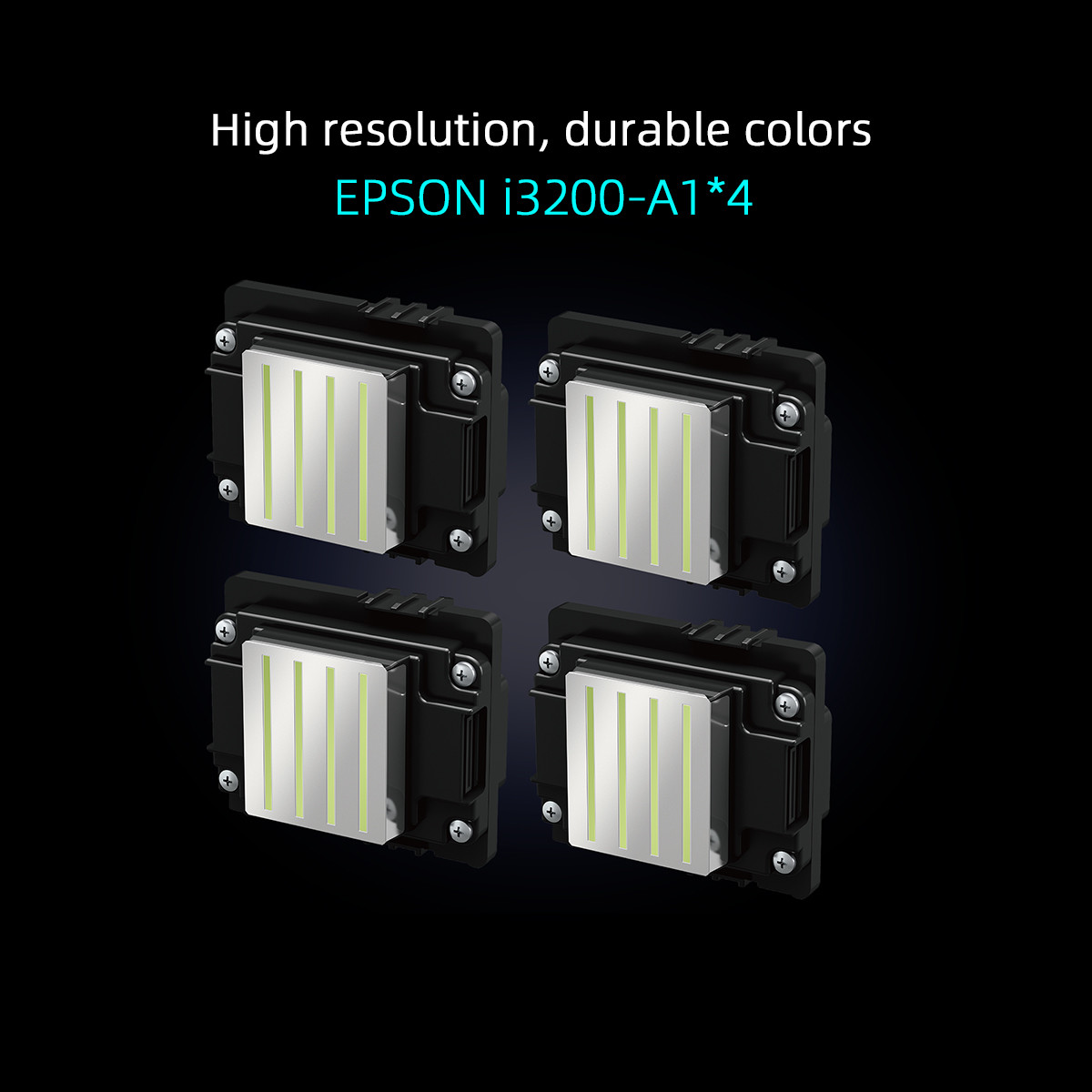

Print head: 4 EPSON i3200-A1 print heads
3 EPSON i3200-A1 print heads
Print color: CMYK+white (EPSON *4)
CMYK+white+FO,FM,FY,FG (EPSON*3)
Print speed: 25㎡/h
Print accuracy: 720*1200/720*1800/720*2400 dpi
Main features:
White ink circulation stirring to prevent ink precipitation and clogging
Waste ink collection bottle alarm to prevent overflow and keep clean
Print head anti-collision system to detect obstacles to prevent nozzle damage
Intelligent control panel and display
Ink shortage alarm
8-color printing customization plan/4-color printing customization plan
| Print head: |
EPSON i3200-A1*4/ EPSPN i3200-A1*3 |
| Print width: |
≤60cm |
| RIP software: |
Flexi |
| Print color: |
CMYK+White(EPSON i3200-A1*4)
CMYK+White,FG,FM,FY,FO(EPSON i3200-A1*3) |
| Recommended speed: |
4PASS 25m²/h 6PASS 16m²/h |
| Printing media: |
Pet film |
| Temperature & Humidity: |
15 - 30℃ & 35-65% |
| Electrical parameters: |
220V, 4.5A, 1KW |
| Operating system: |
Win7,Win10,Win11 |
| Printing accuracy: |
720*1200 / 720*1800 / 720*2400 dpi |
| Machine size and weight: |
1885*750*1654mm 202KG |
| Packaging size and weight: |
1920*1020*720mm 263KG |
After-sales service:
A professional technical team provides 1-on-1 video installation service, machine operation training, machine maintenance and other services. At the same time, the machine has a 1-year warranty period (excluding the printhead). During the warranty period, we will provide free shipping to assist in the replacement of naturally damaged components.
FAQ:
Q: How thick is the PET film that your machine can print
A: The thickness cannot be too thick, only 0.5 thickness (0.08mm) is supported
Q: How to repair the machine if it breaks down
A: We have a one-year warranty, and we support online video technical support
Q: How long does it take to heat clothes on the heat press machine
A: 160 to 170 degrees, the heat pressing time is 10 to 12 seconds
Q: Does the printer have an automatic cleaning system?
A: There is an automatic cleaning system
Q: How much can be printed on a 60cm film, and can it be printed very close to the edge?
A: A little needs to be removed on both sides of a 60cm roll, and it can only be printed to 58-59
Q: Does this machine have a circulating ink system?
A: Yes, there is a circulating ink system

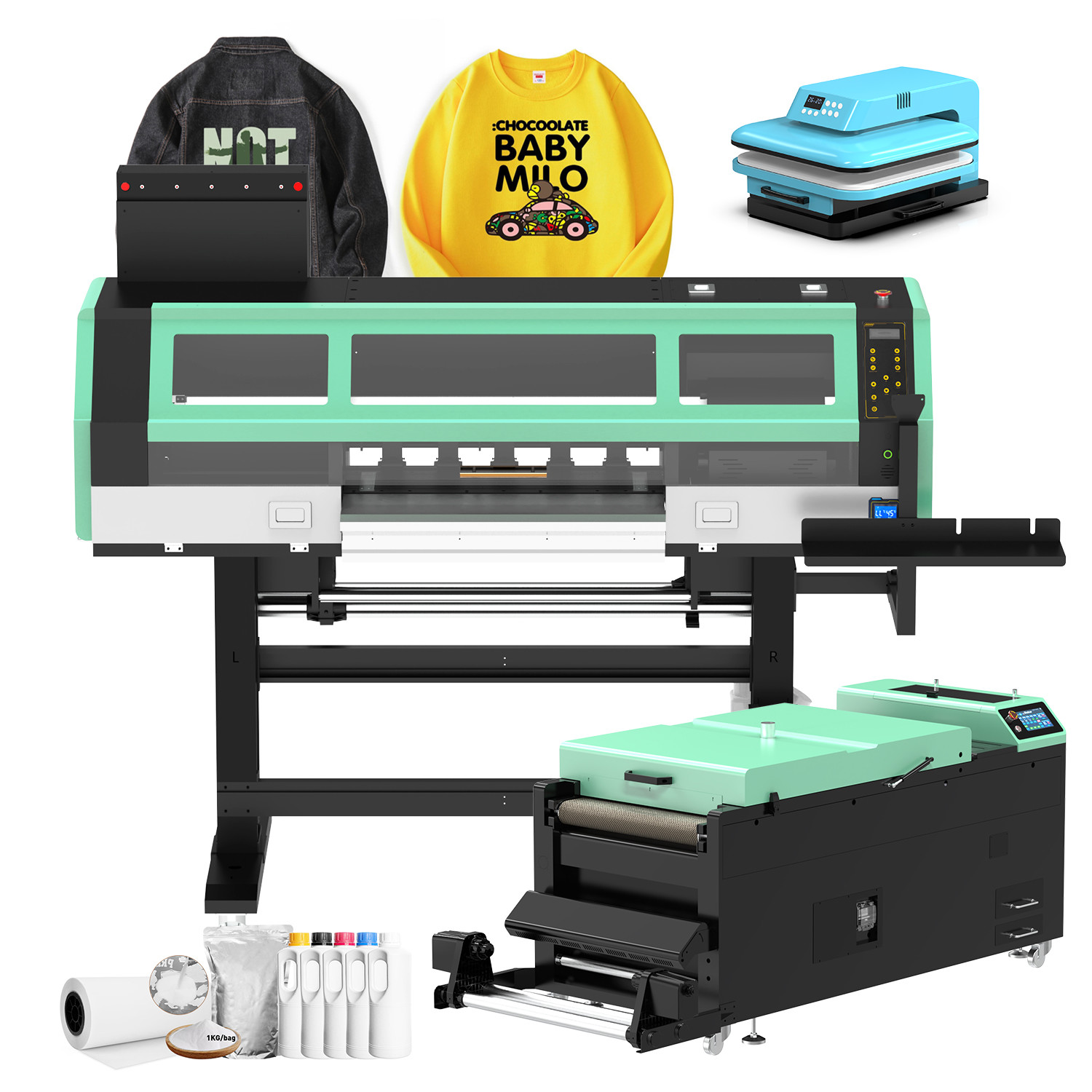

DTF printing, or direct film printing, involves printing a pattern onto a special transfer film, which is then applied to the textile. This process allows for high-quality printing on a variety of fabrics, including cotton, polyester, and blends. The key components of DTF printing include a DTF printer, DTF ink, DTF paper, and a heat press.
